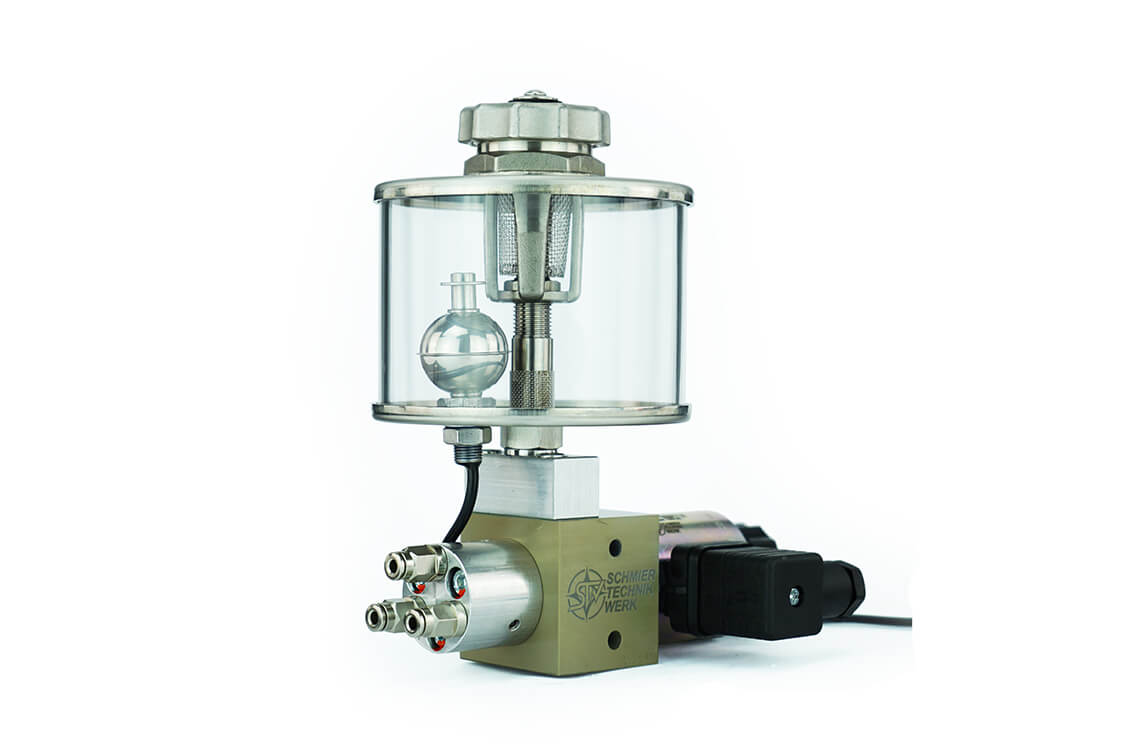

Kettenöler oder Tropföler für die automatische Kettenschmierung mit Schmierpinseln, Schmierbürsten oder Kettenschmierritzeln.
Die Schmierölmenge beträgt dabei immer genau einen Tropfen (30mm³) pro Impuls. Im gegensatz zu Schwerkraftölern (Tropfölern) spielt es dabei keine Rolle, wie die Füllstandshöhe im Ölbehälter ist, wie weit die Schmierstelle entfernt ist und ob sich die Schmierstelle über oder unterhalb des Kettenölers befindet.
Bei der Schmierung von Ketten, Förderbändern, Gleitschienen und dergleichen stoßen klassische Tropföler schnell an ihre Grenzen, da in modernen Betrieben eine Überölung und die damit verbundene Verschmutzung der Umgebung mit Schmiermitteln nicht mehr aktzeptiert werden kann.
Mit einem Schwerkraftöler, der bei vollem Ölbehälter deutlich mehr Medium abgibt als bei geringerem Füllstand, ist eine exakte Dosierung – selbst im Tropfenbereich – nicht zu erreichen.
Mikrodosierpumpen, die ursprünglich für die Minimalmengenschmierung entwickelt wurden sind hier die nahezu perfekte Alternative.
Das exakte Fördervolumen von 30 mm³ (ein Tropfen bei der Variante DEK.30) oder 15 mm³ (1/2 Tropfen bei der Variante DEK.15) und die digital einstellbare Abgabefrequenz machen es zusammen mit einer robusten, einfachen und zuverlässigen Mechanik möglich.

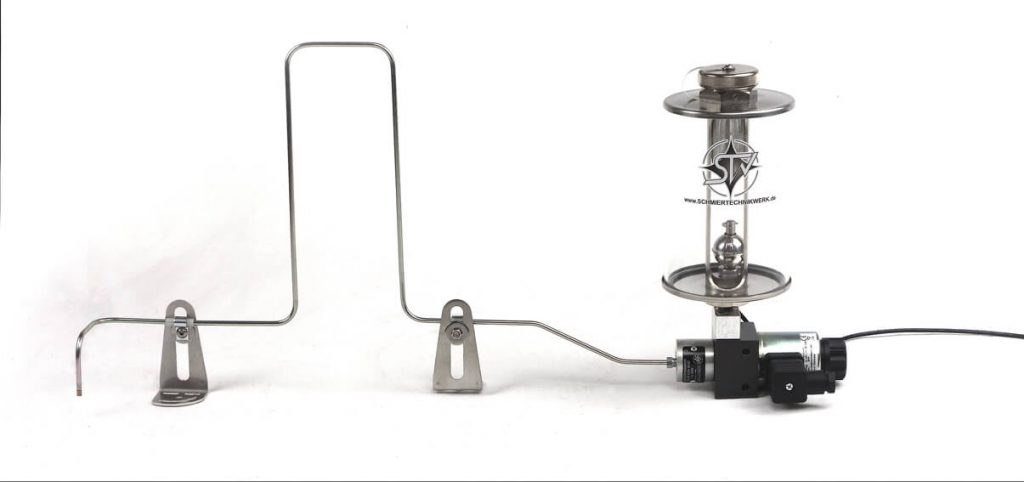

Das Auftragen des Schmiermediums auf z. B. die Förderkette geschieht wie bei bekannten Tropfölern über einen Schmierpinsel in geeigneter Breite oder ein Schmierritzel. Beim Verlegen des Verbindungsschlauches muss dabei nichts beachtet werden da die Ölpumpen in Abhängigkeit von der Viskosität des Schmieröls Strecken von über 10 m überbrücken. Der Förderdruck beträgt bis zu 20 bar.
In Kombination mit dem STW-DigiTimer ist es zuverlässig möglich, Schmierstellen gleichmäßig und absolut reproduzierbar zu schmieren
Funktionsweise:
Jeder elektrische Impuls auf den Dosieröler DEK löst bei Variante DEK-15 die exakte Abgabe von 15 mm³ (1/2 Tropfen) Schmierstoff und bei Variante DEK-30 die Menge von 30 mm³ (ein Tropfen) Schmierstoff aus bis zu vier Auslässen aus.
Betriebsart:
mit DigiTimer: Stellen Sie an der optionalen Kleinsteuerung „DigiTimer“ die genaue Tropfenanzahl pro Minute oder pro Stunde oder pro Tag ein.
mit SPS: Geben Sie das Impulssignal für die Tropfenabgabe des Schmierstoffs direkt von Ihrer Maschinensteuerung aus vor…
Medium: Öl
max. Viscosität: 11.. 300 cSt
Anzahl Ausgänge: 1..4 (Standard)
Abgabevolumen: 15 mm³ (DEK 15) 30 mm³ (DEK 30)
Spannungsversorgung: 24V DC oder 230V AC
Förderdruck: max. 20 bar
Umgebungstemperatur: -10°C .. 50°C
Variante | Anzahl der Auslässe | Größe Ölbehälter | CAD-Modell |
---|---|---|---|
DEK30/15 1.1 | 1 x Ø4 mm | 1 Liter | STEP |
DEK30/15 1.2 | 1 x Ø4 mm | 2 Liter | STEP |
DEK30/15 1.3 | 1 x Ø4 mm | 3 Liter | STEP |
DEK30/15 2.1 | 2 x Ø4 mm | 1 Liter | STEP |
DEK30/15 2.2 | 2 x Ø4 mm | 2 Liter | STEP |
DEK30/15 2.3 | 2 x Ø4 mm | 3 Liter | STEP |
DEK30/15 3.1 | 3 x Ø4 mm | 1 Liter | STEP |
DEK30/15 3.2 | 3 x Ø4 mm | 2 Liter | STEP |
DEK30/15 3.3 | 3 x Ø4 mm | 3 Liter | STEP |
DEK30/15 4.1 | 4 x Ø4 mm | 1 Liter | STEP |
DEK30/15 4.2 | 4 x Ø4 mm | 2 Liter | STEP |
DEK30/15 4.3 | 4 x Ø4 mm | 3 Liter | STEP |
